Automatic Corrugated Sheet Welding Machine - High Precision & Efficient Operation
Product Specification
| Name | Spec |
| Fin Width | 100—1300mm±1mm |
| Fin Length | 300—2000mm |
| Fin Thickness | 1.0—1.5mm |
| Fin Height | 50—400±1.0mm |
| Fin Pitch | 45—80mm±0.20mm |
| Welding speed | 2-3 fins/min |
| Machine weight | 17000kg |
Advantages
1. High Precision & Stable Quality: Adopts advanced positioning and welding control tech, ensuring uniform weld seams, no offset, and consistent quality that meets industrial welding standards.
2. Efficient & Productivity-Boosting: High-speed welding design cuts processing time by 30%+ vs manual operations, supporting continuous 24/7 work to meet large-batch production needs.
3. Wide Compatibility: Works with corrugated sheets of different materials (steel, aluminum) and thicknesses, adapting to diverse industrial application scenarios.
4. User-Friendly & Low-Cost: Intuitive touchscreen interface enables quick operation (no professional expertise required); rugged structure reduces wear, lowering maintenance frequency and costs.
5. Safety & Reliability: Equipped with overload protection, emergency stop, and heat dissipation systems, preventing equipment damage and ensuring operator safety during use.

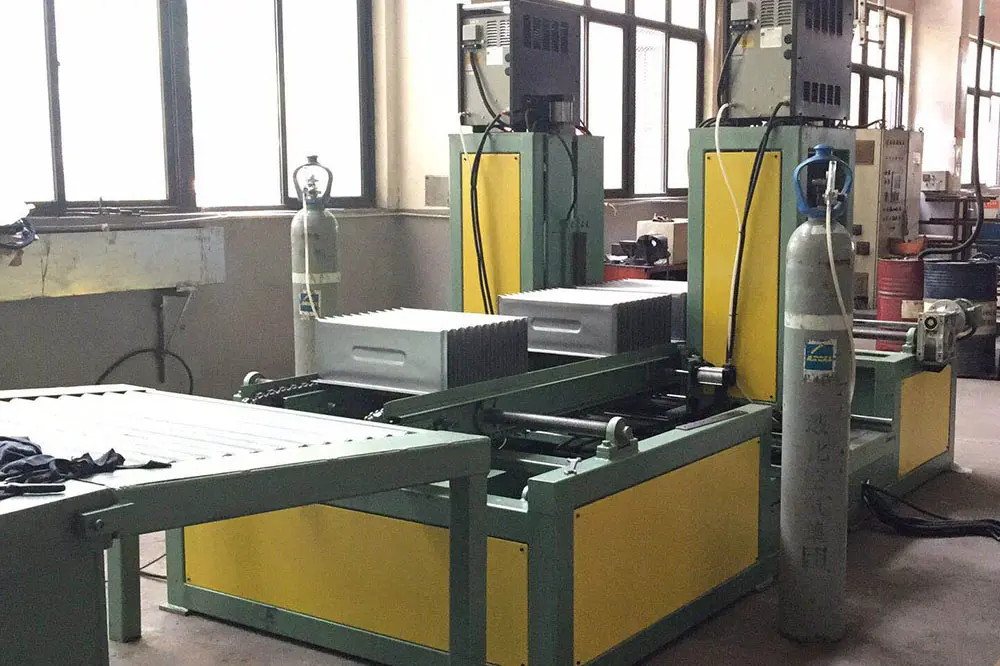

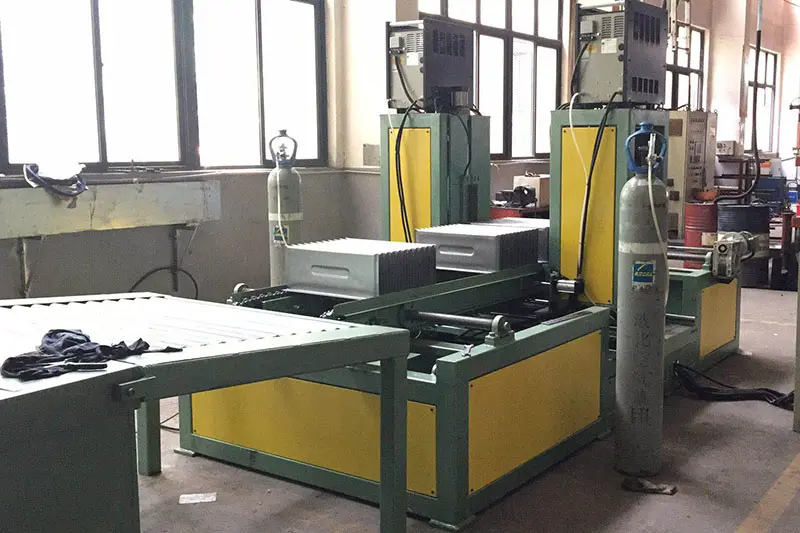

Details Display
Application
1. Construction Industry:
Used for welding corrugated metal sheets in roof panels, wall cladding, and steel structure enclosures of industrial plants, commercial buildings, and prefabricated houses—ensuring tight, durable joints to resist wind and water.
2. HVAC & Ducting Systems:
Welds corrugated aluminum/steel sheets into air ducts, exhaust pipes, and heat exchanger casings, meeting the industry’s strict requirements for airtightness and structural stability.
3. Metal Processing & Manufacturing:
Processes corrugated sheets for electrical cabinet casings, equipment protection covers, and shipping containers, enabling efficient mass production of standardized metal components.
4. Infrastructure Projects:
Applied in welding corrugated sheet components for highway sound barriers, railway shelter structures, and municipal public facility exteriors.
5. Automotive & Aerospace Supporting:
Welds thin-gauge corrugated metal sheets for automotive underbody shields, aircraft engine compartment liners, and lightweight structural parts (with precision-adjustable settings).
