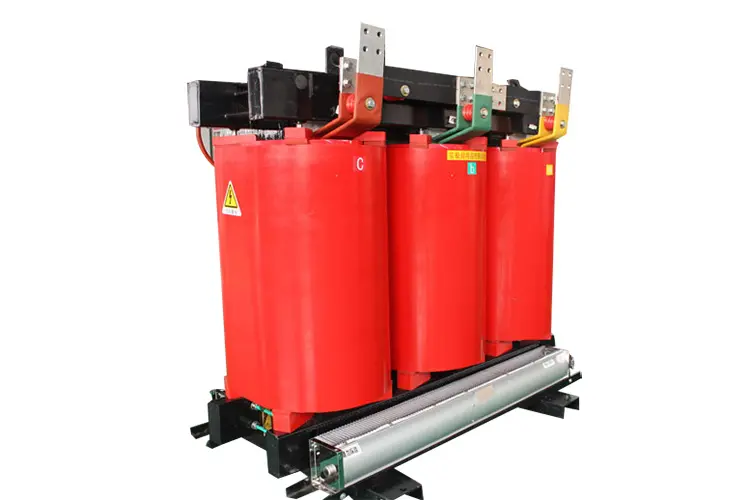

Environmentally Friendly Dry-Type Transformer - Leakage-Free for Green Electrical Projects
Product Specification
| Basic Specifications | |
| Rated Capacity | 50kVA - 2500kVA (customizable for larger capacity) |
| Rated Voltage | High voltage (HV): 6kV / 10kV / 35kV; Low voltage (LV): 0.4kV (380V/220V) |
| Frequency | 50Hz / 60Hz (dual-frequency optional) |
| Phase | Three-phase |
| Connection Group | Dyn11 (standard); Yyn0 / Dd0 (optional) |
| Electrical Performance | |
| No-Load Loss | ≤180W (50kVA) - ≤2200W (2500kVA) (meets IEC 60076-11 Class 1) |
| Load Loss (at 1.0 rated current, 75℃) | ≤850W (50kVA) - ≤12500W (2500kVA) |
| No-Load Current | ≤2.5% (50kVA) - ≤1.0% (2500kVA) |
| Short-Circuit Impedance | 4% (50kVA-1000kVA); 6% (1250kVA-2500kVA) (tolerance: ±10%) |
| Insulation Resistance (25℃) | HV-LV & Earth ≥300MΩ; LV-Earth ≥100MΩ |
| Temperature Rise & Heat Dissipation | |
| Temperature Rise Limit (rated load) | Winding (Class H insulation) ≤125K; Iron Core ≤80K |
| Cooling Method | AN (Air Natural) / AF (Air Forced, optional for ≥1000kVA) |
| Overload Capacity | 120% rated load for 2 hours (temperature rise ≤140K); 150% rated load for 30 minutes |
| Insulation & Protection | |
| Insulation Class | H (temperature resistance up to 180℃) |
| Withstand Voltage (1min, 50Hz) | HV side: 35kV (for 10kV rated voltage); LV side: 6kV |
| Protection Level | IP20 (standard); IP21 / IP30 (customizable for outdoor/ dusty environments) |
| Structure & Environment | |
| Noise Level | ≤55dB (at 1m distance, 50kVA) - ≤65dB (2500kVA) |
| Weight | ~380kg (50kVA) - ~3200kg (2500kVA) |
| Dimension (L×W×H) | 1200×800×1300mm (50kVA) - 2800×1600×2500mm (2500kVA) |
| Working Environment | Temperature -25℃~+40℃; Humidity ≤90% (non-condensing); Altitude ≤1000m (derating required above 1000m) |
Advantages
1. Fireproof: epoxy resin with fiberglass has features with flame retardant and easy to extinguish.
2. Economical: it could be installed near by the load center to reduce cost and circuit energy consumption.
3. Maintenance-free,non pollution. There is no oil in the transformer, no need to maintain. It could save a lot of maintenance tine and cost.
4. Moisture-proof. It could work in the 100% humidity environment. There is no need to dry it in advance when it when it resumes operations.
5. Low loss, low noise and effective heat dissipation.

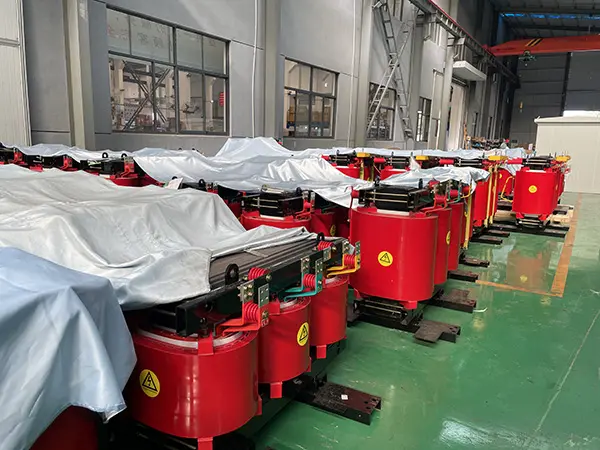

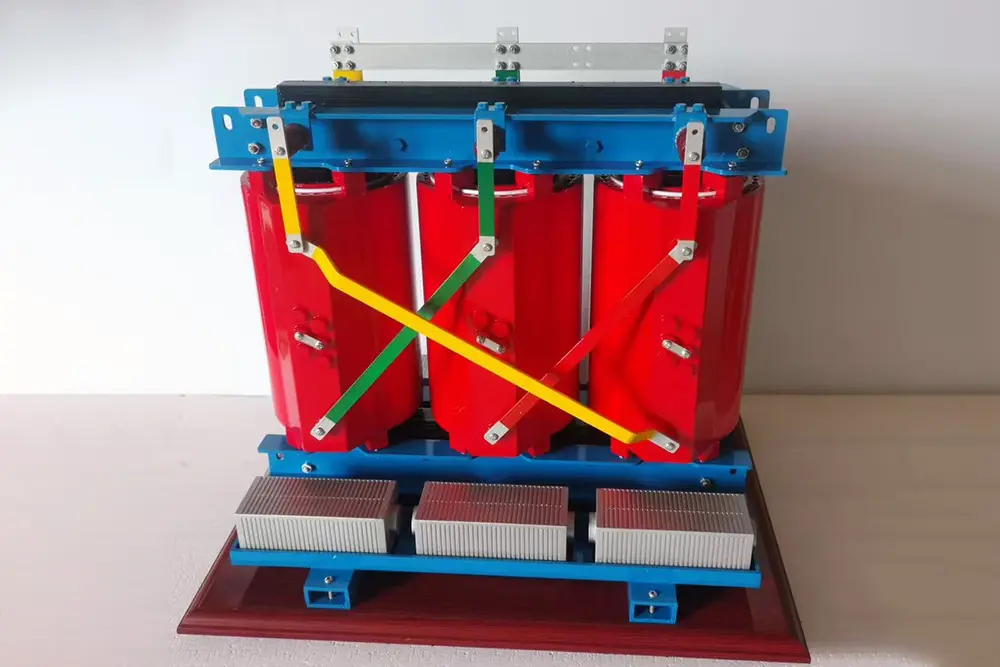

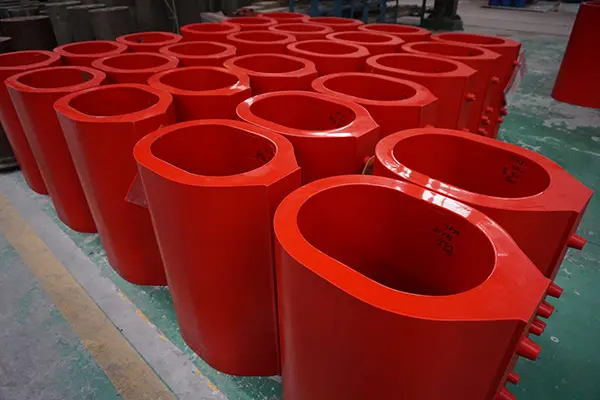

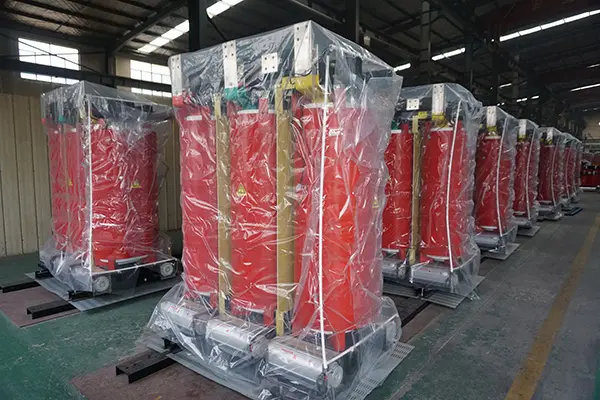

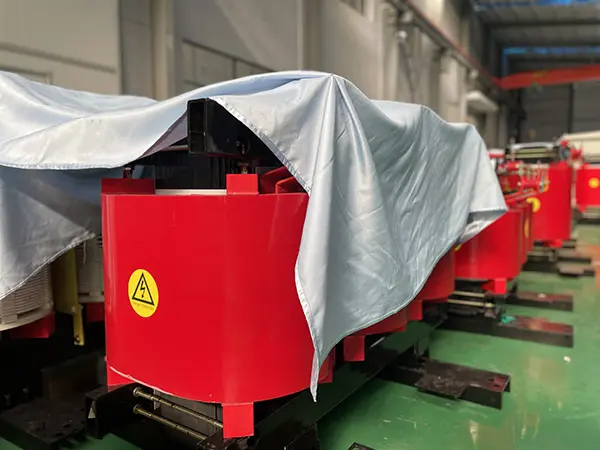

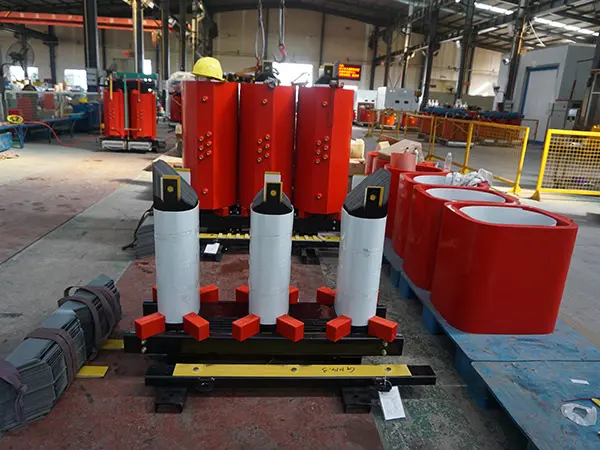

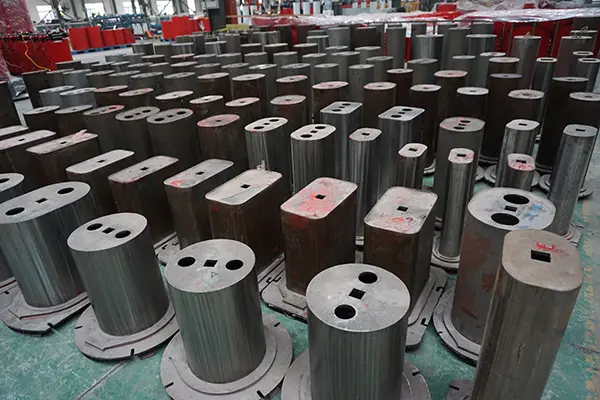

Product Display
Applications of Dry-type Transformer
1. Indoor Commercial Spaces
Ideal for shopping malls, office towers, and hotels—its oil-free, flame-retardant design eliminates fire/leak risks in enclosed areas, powering HVAC systems, elevators, lighting, and commercial appliances while operating quietly to avoid disrupting public environments.
2. Data Centers & Telecom Facilities
Critical for powering servers and network equipment, as its stable voltage output prevents data loss from fluctuations. Its dust-proof and high-temperature-resistant features suit the controlled, high-density electrical environments of data hubs.
3. Industrial Workshops
Used in electronics, machinery, and food processing plants—where oil-based transformers pose contamination risks. It withstands industrial dust and moderate heat, supporting continuous operation of production lines with low maintenance needs.
4. Renewable Energy & Urban Grids
Integrated with solar/wind energy storage systems to convert and distribute clean power. Also deployed in residential neighborhoods and urban medium-low voltage grids, ensuring safe, efficient electricity supply for households without environmental hazards.
