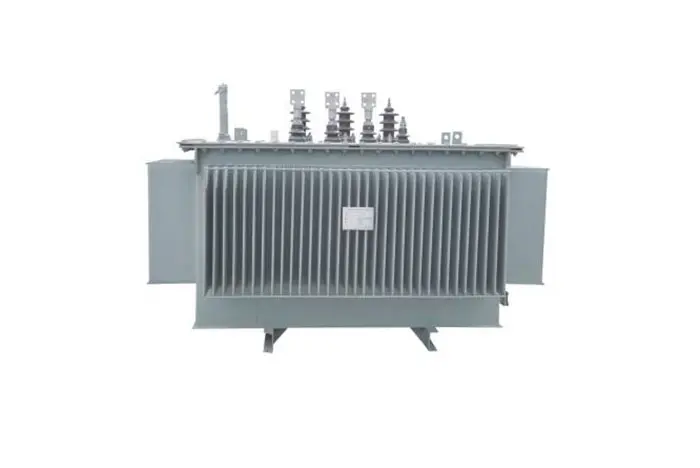

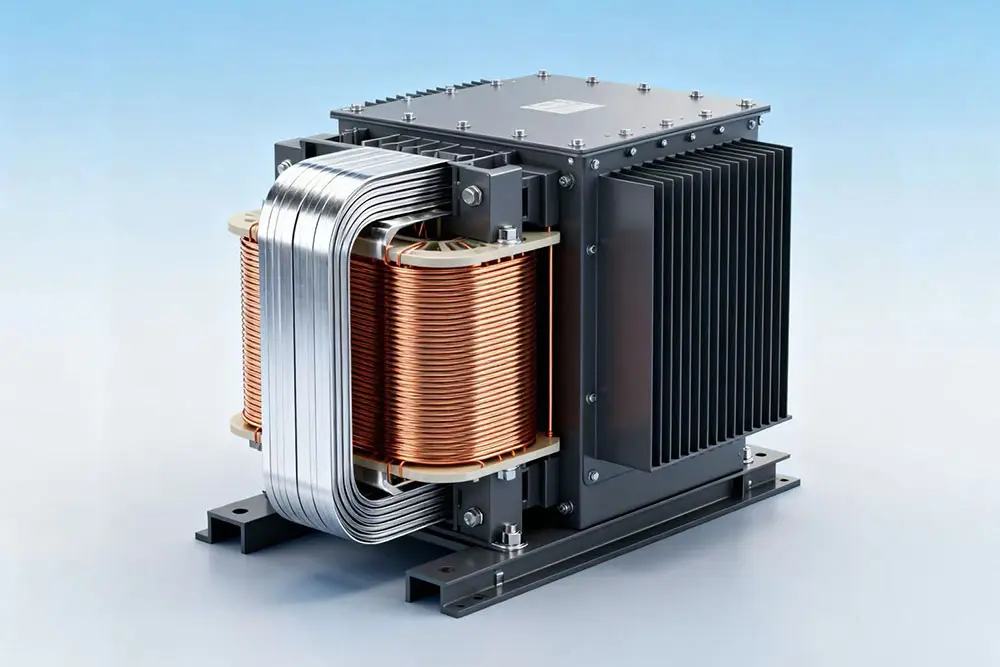

High-Efficiency Amorphous Alloy Iron Core Transformer

Basic Information

Operating Conditions

Losses & Impedance (S16-100/10 Example)

Efficiency Compliance: GB 20052-2024 Class 1 (S16/S17); IEC 60076-11 IE3/IE4 (top international efficiency)

Example S16-100/10 Key Specs

Customizable for high-altitude, special voltage, or low-temperature needs. All parameters third-party verified.

1. Extreme Energy Efficiency with Ultra-Low No-Load Loss

As its most core advantage, the amorphous alloy material has an irregular atomic structure, resulting in much lower hysteresis loss than traditional silicon steel sheet cores. Its no-load loss is 30%-70% lower than that of conventional silicon steel transformers. Especially suitable for long-term operation scenarios such as power grids and residential areas, it can significantly reduce ineffective energy consumption, lowering users’ electricity costs and overall energy usage.

2. Low-Noise Operation, Suitable for Multiple Scenarios

Due to the small magnetostriction coefficient of the amorphous alloy core (resulting in low core vibration amplitude), the transformer operates at a lower noise level (usually 5-10dB lower than traditional products). No additional noise reduction measures are needed, making it suitable for noise-sensitive environments such as commercial buildings, residential communities, and hospitals, enhancing user experience.

3. High Magnetic Permeability for Higher Operating Efficiency

Amorphous alloy exhibits excellent magnetic permeability, achieving high magnetic flux even under low magnetic field strength. This optimizes the transformer’s load loss and improves energy conversion efficiency (mostly meeting national Level 1 energy efficiency standards). Especially when the grid voltage fluctuates, it can maintain stable output more effectively, reducing efficiency loss during power transmission.

4. Strong Overload Capacity and Enhanced Stability

The core material has better heat resistance and mechanical strength, enabling it to withstand current surges exceeding the rated load for a short time (e.g., during peak electricity consumption periods). With lower total heat generation, it effectively prevents component aging or failures caused by overload, extends the stable operation cycle of the equipment, and reduces maintenance costs.

5. Longer Service Life and Outstanding Environmental Performance

On one hand, the low-loss and low-heat characteristics slow down the aging of internal components (such as coils and insulating materials), allowing the equipment to have a design life of over 20 years. On the other hand, energy-saving operation directly reduces carbon emissions; additionally, the amorphous alloy material is recyclable, complying with environmental requirements such as "green power grids" and "low-carbon buildings".

I. Power System: Core Equipment for Distribution Networks and Grid Renovation

As a key link in transmitting electricity from "substations" to "user terminals", the Amorphous Alloy Iron Core Transformer is the preferred equipment for distribution networks, especially suitable for the following scenarios:

● Urban and rural distribution network construction/renovation: Given the long-term energized operation of urban and rural power grids (with a high proportion of no-load time), its advantage of 30%-70% lower no-load loss can significantly reduce long-term energy consumption for power grid operators, and meet the energy-saving requirements of modern power grid upgrading.

● New energy grid connection: It is applicable to the supporting power distribution of new energy projects such as solar photovoltaic (PV) stations and wind farms. Its high efficiency and stable output can minimize energy loss during the conversion and transmission of new energy power, ensuring efficient integration of clean energy into the main grid.

II. Industrial and Commercial Fields: Energy-Saving Solution for High-Demand Scenarios

Its high overload capacity and low operating noise make it well-suited for industrial and commercial environments with high power demand and strict operational requirements:

● Industrial parks/factories: It provides stable power supply for high-power equipment (such as machinery, production lines, and precision instruments) in manufacturing plants. The strong overload capacity can cope with sudden power surges during peak production periods, while low energy loss helps enterprises reduce electricity costs and achieve energy-saving production.

● Large commercial complexes/supermarkets: These scenarios require 24-hour continuous power supply (for air conditioning, lighting, and elevators). The transformer’s low no-load loss reduces energy waste during off-peak hours (e.g., late at night), and low noise avoids affecting customer experience and commercial operations.

III. Civil Buildings: Environment-Friendly Choice for Residential and Public Spaces

For civil scenarios that prioritize noise control and long-term energy efficiency, this transformer is an ideal option:

● Residential communities/high-rise buildings: Installed in community power distribution rooms, its low noise (5-10dB lower than traditional transformers) prevents disturbance to residents’ daily life (especially at night). Meanwhile, long-term energy-saving operation helps property management reduce public electricity expenses.

● Public buildings: It is used in hospitals, schools, and libraries. Hospitals require stable power for medical equipment and quiet environments for patients; schools and libraries need to avoid noise affecting teaching and reading—this transformer’s low-noise and high-stability features fully meet these demands.

IV. Special Fields: Adaptation to Professional Requirements

● Data centers: Data centers operate 24/7 with high power density. The transformer’s high efficiency and low heat generation reduce the load of the cooling system (lower heat output means less energy consumed by air conditioners), while stable power supply ensures the normal operation of servers and data storage equipment.

● Remote areas/off-grid systems: For off-grid power systems in remote mountainous areas or pastoral areas (powered by small PV or wind energy), its high energy efficiency maximizes the utilization of limited clean energy, ensuring reliable power supply for local residents’ daily life and basic production.
