High-Precision Amorphous Alloy Core CNC Shearing Machine
Product Specification
| Code | SH-200 |
| Shearing width | 140-230mm |
| Feeding speed | 60m/min |
| Shearing length | 300-3000mm |
| Shearing length precision | 士0.5mm |
| Shearing angle | 90° |
| Shearing angle precision | 士0.025 |
| Shearing thickness | Each layer 0.023mm, Max 15 layers |
| Stacking thickness | 180mm |
| Stacking position error | 士0.5mm |
| Length of the loading platform | 2000mm |
| Coil outer diameter | φ1100mm |
| Coil inner diameter | φ400mm |
Advantages
1. Exceptional Precision: Ensures minimal shearing error, effectively preserving the unique magnetic properties of amorphous alloys—critical for high-performance transformer/motor cores.
2. High Automation & Efficiency: Equipped with CNC control and automatic functions, it reduces manual intervention, significantly accelerating processing speed and overall production efficiency.
3. Strong Adaptability: Handles diverse amorphous alloy core specifications, meeting customized processing needs for different power/electrical equipment components.
4. Reliable Stability: Built with durable parts, it supports long-term consistent operation, lowering maintenance frequency and ensuring stable output quality.

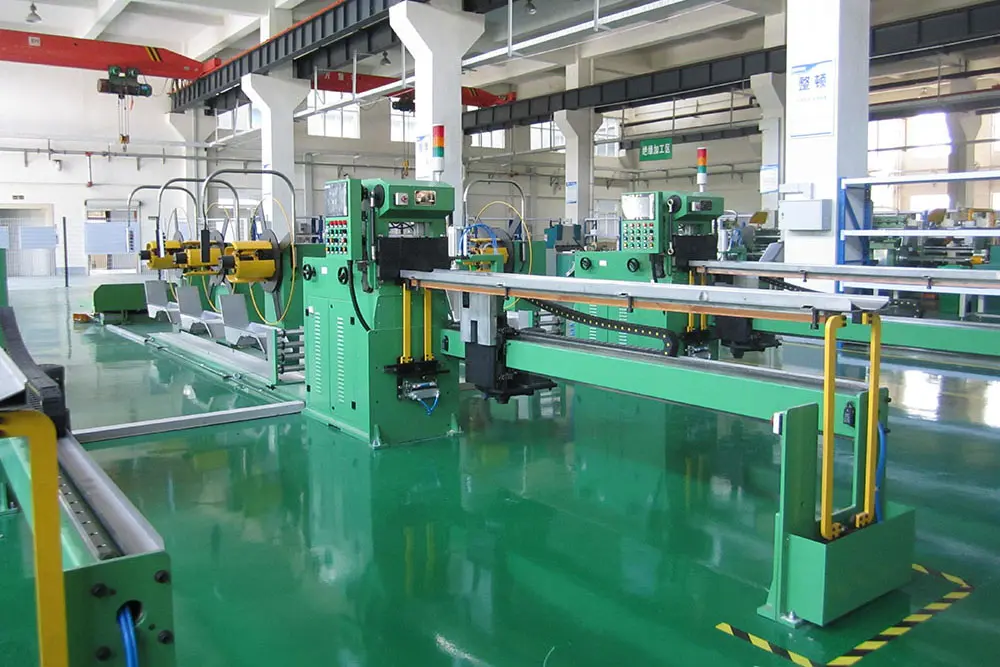

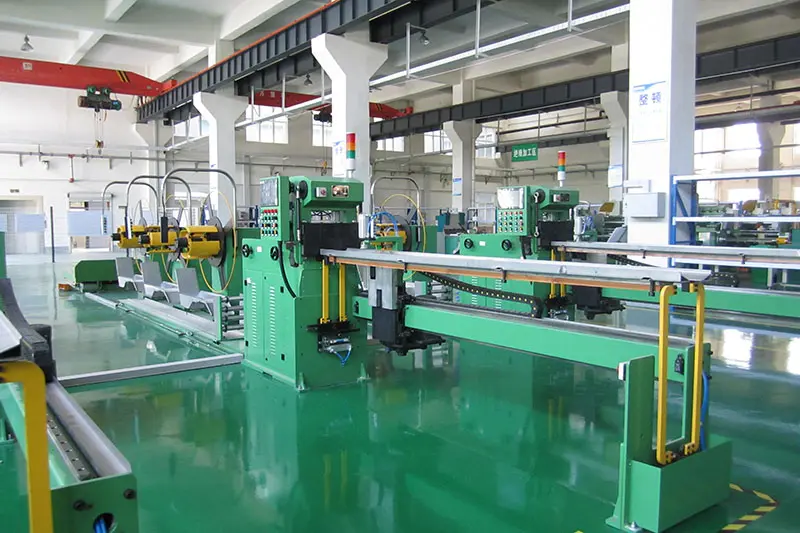

Details Display
Application
1. Low-Loss Transformer Manufacturing:
Precisely shears amorphous alloy cores (with minimal error) to make transformer cores, reducing magnetic loss—ideal for energy-saving power transformers in grid construction.
2. High-Efficiency Motor Production:
Processes customized amorphous alloy core specs, supporting the fabrication of high-efficiency motors for new energy vehicles, industrial drives, and household appliances.
3. Reactor & Inductor Fabrication:
Adapts to diverse core sizes, providing accurately sheared amorphous alloy cores for low-loss reactors (used in power distribution) and inductors (for electronic equipment).
4. Special Electrical Equipment Making:
Supplies stable-quality amorphous alloy cores for special devices like UPS power supplies and energy storage systems, ensuring their reliable operation in power-sensitive scenarios.
