High-Voltage Auto Wire Arranger-Winder (Precision Servo)
Product Specification
| Code | SH-600 | SH-800 | SH-1000 | |
| Coil height | ≤600mm | ≤800mm | ≤1000mm | |
| Coil outer diameter | 80-500mm | 80-600mm | 80-800mm | |
| Main axis rotating speed | 0-375r/min | 0-220r/min | 0-220r/min | |
| Speed adjusting method | Stepless speed adjust | |||
| Working torque | ≤300.M | |||
| Main axis center height | 850mm | |||
| Main axis loading | ≤200kg | ≤300kg | ≤500kg | |
| Guiding wire specification | Round wire：φ0.3-φ3mm | Flat wire：≤3*12mm | ||
| Wire cabling precision | 0.01mm | |||
| Main axis size | 50*50*800mm(90*50*800mm) | 50*50*1000mm(90*50*1000mm) | 50*50*1200mm (90*50*1200mm) | |
Advantages
1. Precise Operation: Adopts precision servo control to ensure stable wire arranging and winding, avoiding offset and maintaining high processing accuracy.
2. Strong Adaptability: Supports multi-spec wire adaptation, compatible with different types and sizes of wires, meeting diverse industrial production needs.
3. Intelligent Protection: Equipped with real-time monitoring function, it can promptly detect abnormal conditions (such as wire breakage) and trigger protection mechanisms to reduce material waste and equipment damage.
4. High Efficiency: Industrial-grade design enables continuous and efficient operation, suitable for mass production of high-voltage coils, significantly improving production efficiency compared to manual or semi-automatic equipment.
5. Quality Assurance: Stable performance and precise control help improve the qualification rate of finished products, reducing rework and ensuring consistent product quality.

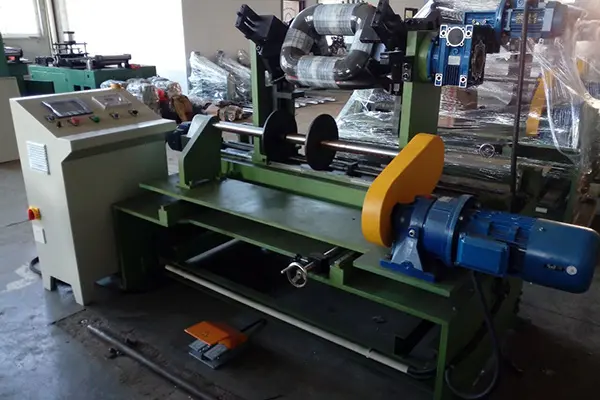

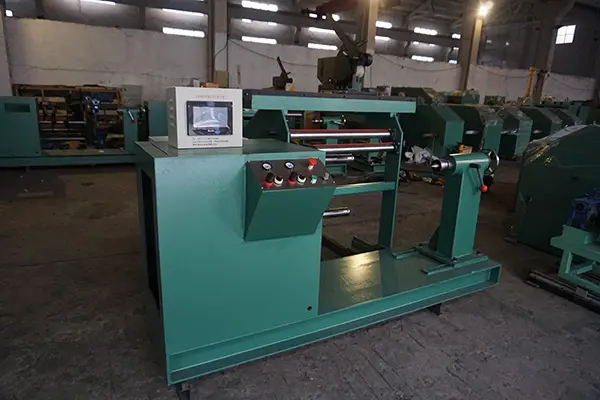

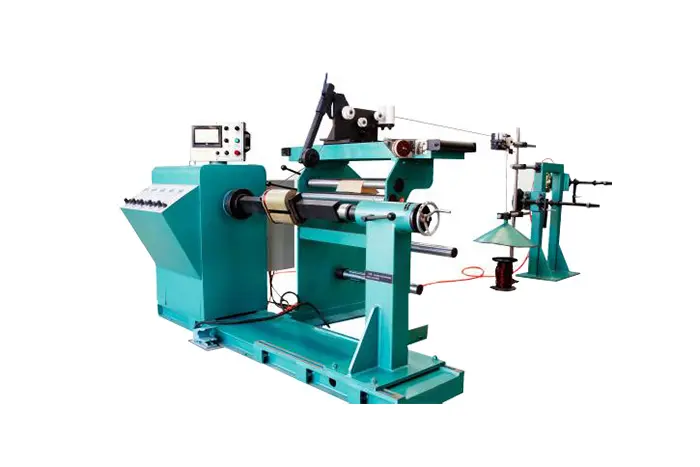

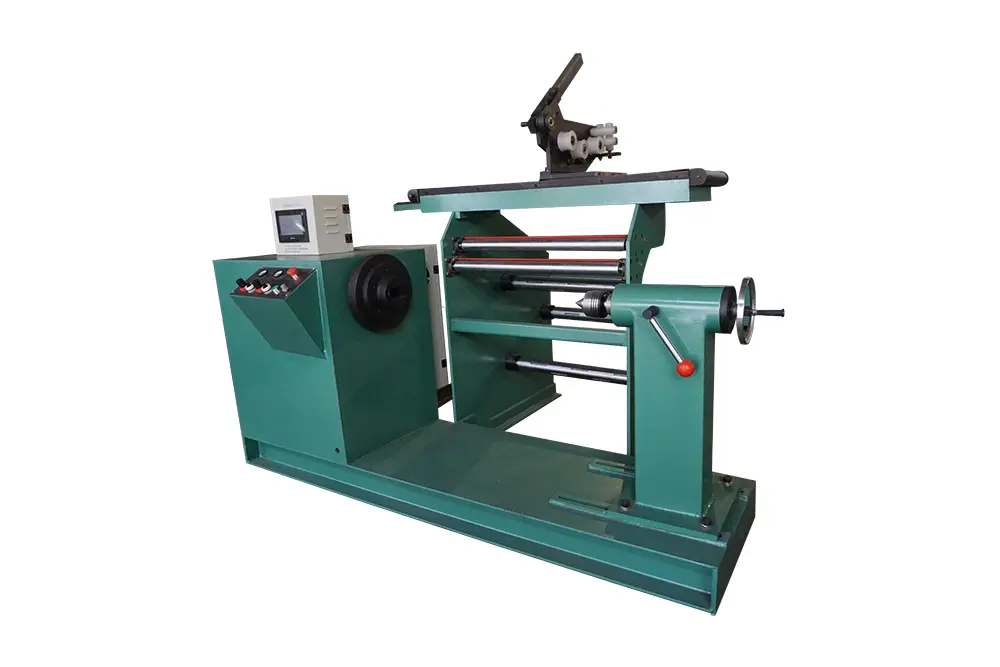

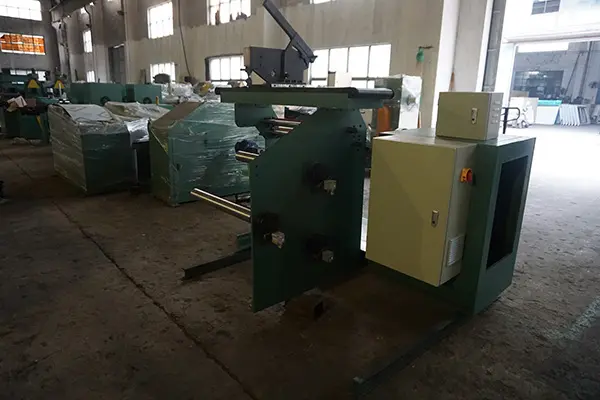

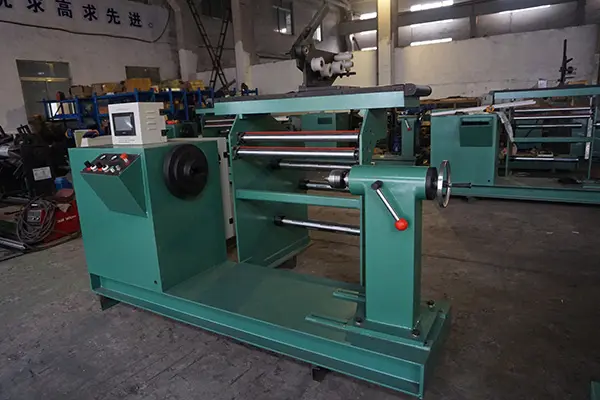

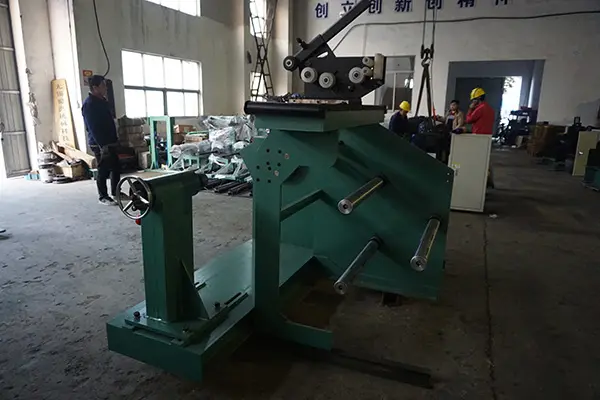

Product Display
Application
1. Power Transformer Industry:
Used for winding high-voltage coils (such as primary coils of power transformers) – its precise and stable tension control ensure coil insulation performance and electrical conductivity, meeting the high reliability requirements of power transmission equipment.
2. High-Voltage Inductor Manufacturing:
Applied to produce high-voltage inductors (e.g., inductors for power electronic converters, medical high-frequency equipment) – it adapts to thin/thick enameled wires, avoiding wire damage during winding and ensuring inductor inductance accuracy.
3. New Energy Equipment Field:
Suitable for winding high-voltage components in new energy systems, such as coils for photovoltaic inverters, high-voltage battery management system (BMS) inductors, and wind power converter reactors – its industrial-grade efficiency matches the mass production needs of new energy equipment.
4. High-Voltage Electrical Appliance Production:
Used in manufacturing high-voltage electrical components like high-voltage contactors, voltage regulators, and surge protectors – it ensures uniform winding of internal high-voltage coils, enhancing the safety and service life of electrical appliances.
5. Special Electrical Equipment Sector:
Applied to winding coils for special high-voltage equipment, such as industrial high-frequency heaters, medical X-ray machine high-voltage transformers, and aerospace high-voltage power supplies – its high precision and stable operation meet the strict performance standards of special fields.
