Industrial Corrugated Sheet Forming Machine - High Precision & Fast Shaping
Product Specification
| Name | Spec |
| Steel Thickness | 1.0~1.5（mm） |
| Fin Length | 300~2000（mm） |
| Fin Width | 300~1300（mm） |
| Fin Height | 40~400±0.2（mm） |
| Fin Pitch | 42~80±0.2（mm） |
| Fin Pitch Tolerance | ± 0.2（mm） |
| Working speed | 3pcs/1min |
| Machine weight | 11000kg |
Advantages
1. High Precision & Consistent Shaping: Adopts advanced roll forming technology, ensuring uniform wave profiles, smooth sheet surfaces, and no material deformation—meeting strict industry standards for corrugated sheet dimensions.
2. Strong Adaptability: Supports adjustable wave height, pitch, and sheet thickness, compatible with steel, aluminum, and other metal materials, fitting diverse application needs in construction, HVAC, etc.
3. High Efficiency & Automation: Features automatic feeding, forming, and cutting functions, reducing manual intervention and boosting production efficiency by 40% compared to traditional manual processes.
4. Stable & Durable: Heavy-duty frame structure resists vibration during long-term continuous operation, minimizing equipment wear and extending service life with low maintenance needs.
5. Easy to Operate: User-friendly control interface simplifies parameter setting; no professional expertise required, enabling quick startup and reducing training costs for operators.

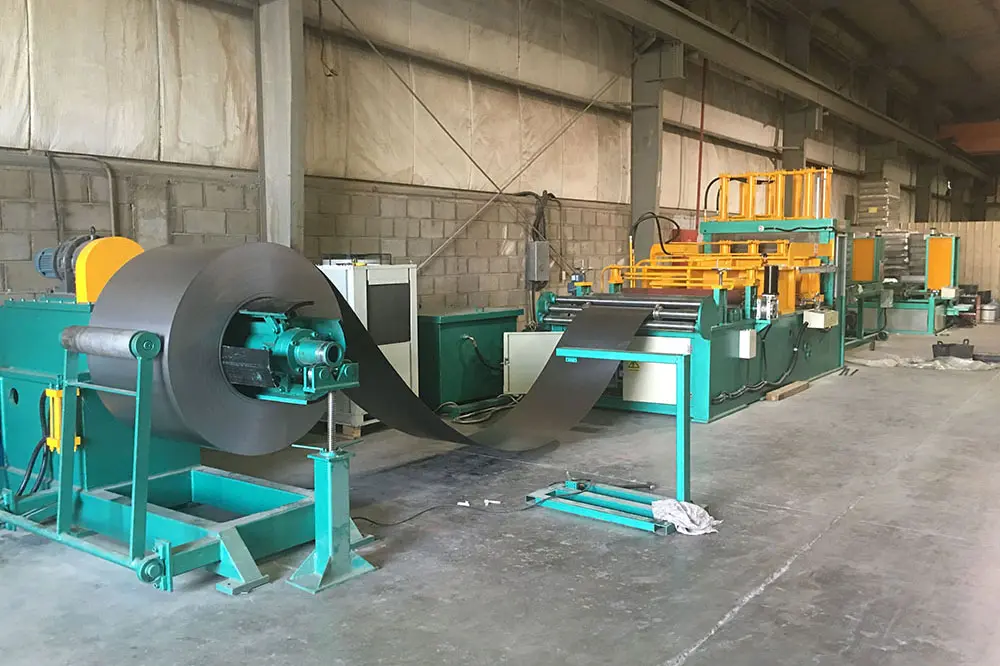

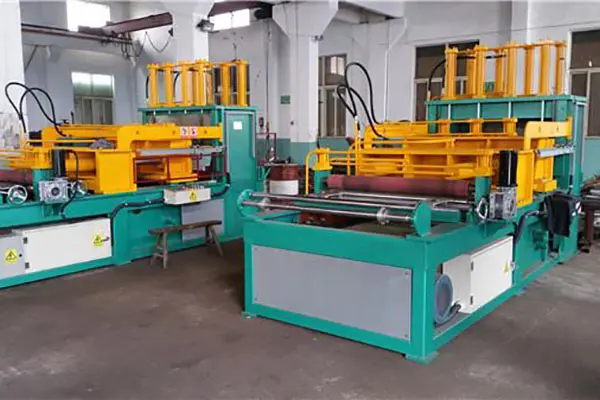

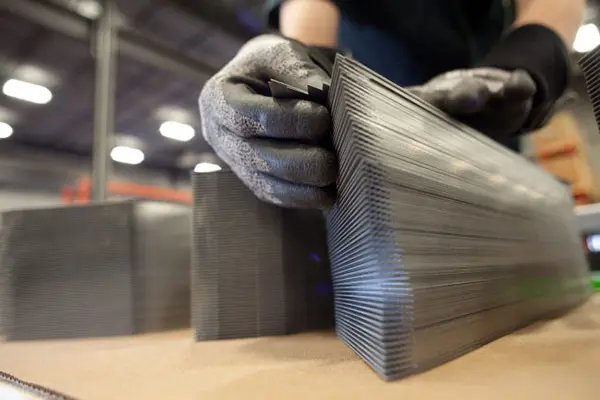

Details Display
Application
1. Construction Industry:
Produces corrugated metal sheets for industrial plant roofs, commercial building wall cladding, and prefabricated house structural panels—delivering durable, weather-resistant components.
2. HVAC & Ducting Systems:
Forms thin-gauge corrugated aluminum/steel sheets into air ducts, heat exchanger casings, and ventilation pipes, meeting airtightness and structural demands.
3. Metal Processing & Manufacturing:
Shapes corrugated sheets for electrical cabinet shells, equipment protection covers, and shipping container side panels, enabling mass production of standardized parts.
4. Infrastructure Projects:
Supplies corrugated sheets for highway sound barriers, railway platform canopies, and municipal facility exteriors, with adjustable parameters to fit different engineering specs.
5. Automotive & Light Industry:
Creates lightweight corrugated sheets for automotive underbody shields, home appliance outer casings, and exhibition booth structural components.
