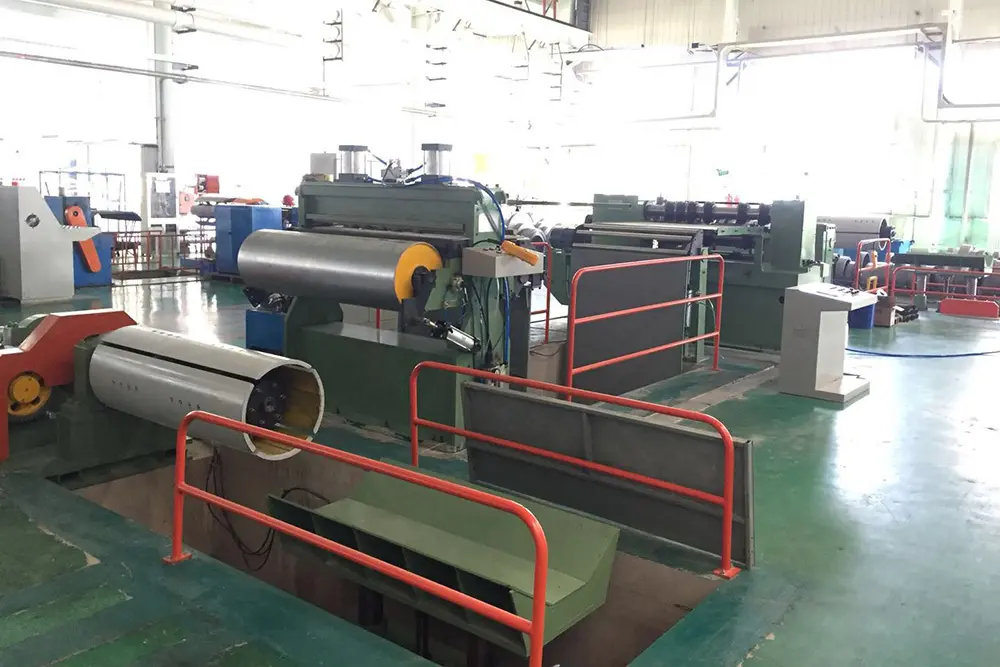

Silicon Steel Coil CNC Slitting Equipment (Longitudinal Type)
Product Specification
| Code | SH-1000 | SH-1250 |
| Material roll inner | 500mm | 500mm |
| Material roll width | 1000mm | 1250mm |
| Material roll weight | 5T | 8T |
| Material thickness | 0.20-0.5mm | 0.20-0.5mm |
| Slitting width | 40-1000mm | 40-1250mm |
| Slitting speed | 0-60m/min; 0-90m/min; 0-150m/min; | |
| Slitting width error | ±0.1mm | ±0.1mm |
| Slitting burr | ≤0.02mm | ≤0.02mm |
| Slitting strips | 10 | 12 |
| Straightness deviation | ≤0.2mm/m | ≤0.2mm/m |
| Installing power | 35kw/55kw/85kw | 45kw/65kw/100kw |
Advantages
1. Superior Precision: Siemens PLC control ensures ≤0.05mm width error and ≤0.02mm burr (even for 0.18mm-thin silicon steel), preserving material magnetic performance.
2. High Efficiency: 250m/min max slitting speed plus EPC alignment & auto tool change reduce manual work, significantly boosting production throughput.
3. Strong Adaptability: Handles 1250mm-wide, 0.2-0.5mm-thick coils and 20-25T loads, meeting diverse specification needs for silicon steel processing.
4. Reliable Stability: Durable alloy knives and YUKEN hydraulic parts resist wear, ensuring long-term consistent operation.

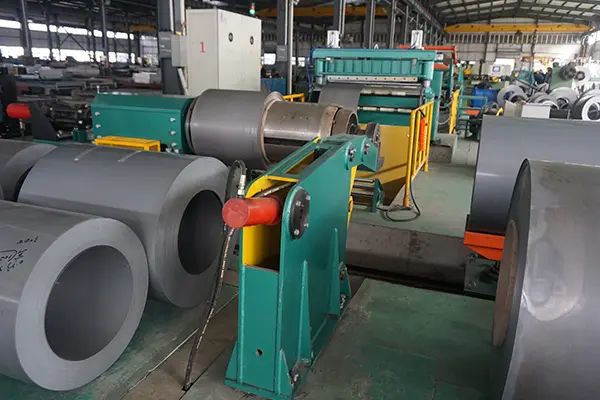

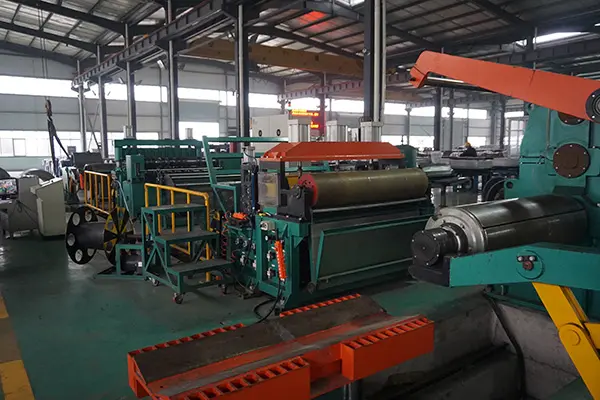

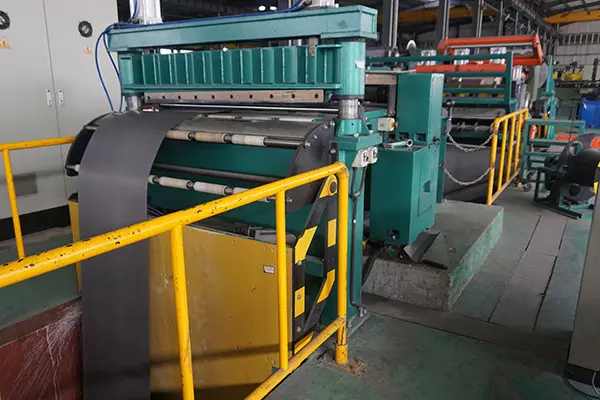

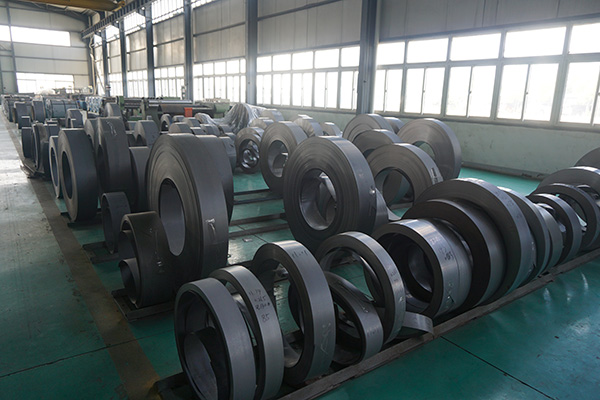

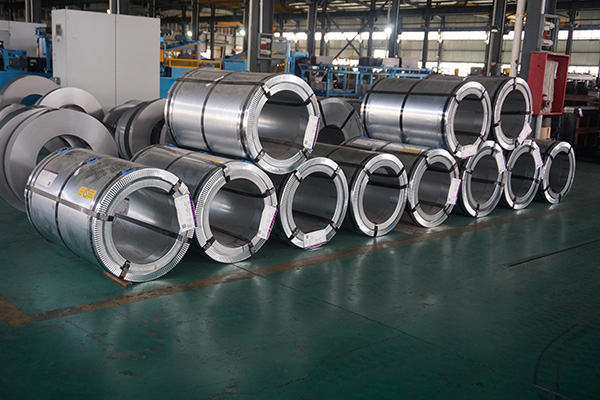

Details Display
Application
1. Transformer Manufacturing:
Slits silicon steel coils into high-precision strips (with ≤0.05mm width error) for making transformer cores, ensuring stable magnetic conductivity and low energy loss of transformers.
2. Motor Production:
Processes thin silicon steel sheets (down to 0.18mm) into specified-width strips with minimal burr (≤0.02mm), which are used to fabricate motor stators and rotors, improving motor efficiency and service life.
3. Electrical Equipment Fabrication:
Adapts to 0.2-0.5mm thick, 1250mm wide silicon steel coils, providing customized strips for manufacturing electrical components like inductors, reactors, and electromagnetic switches, meeting diverse equipment specs.
4. Power Equipment Industry:
With 250m/min high efficiency and 20-25T load capacity, it mass-produces qualified silicon steel strips for power transmission and distribution equipment, supporting the stable operation of power systems.
